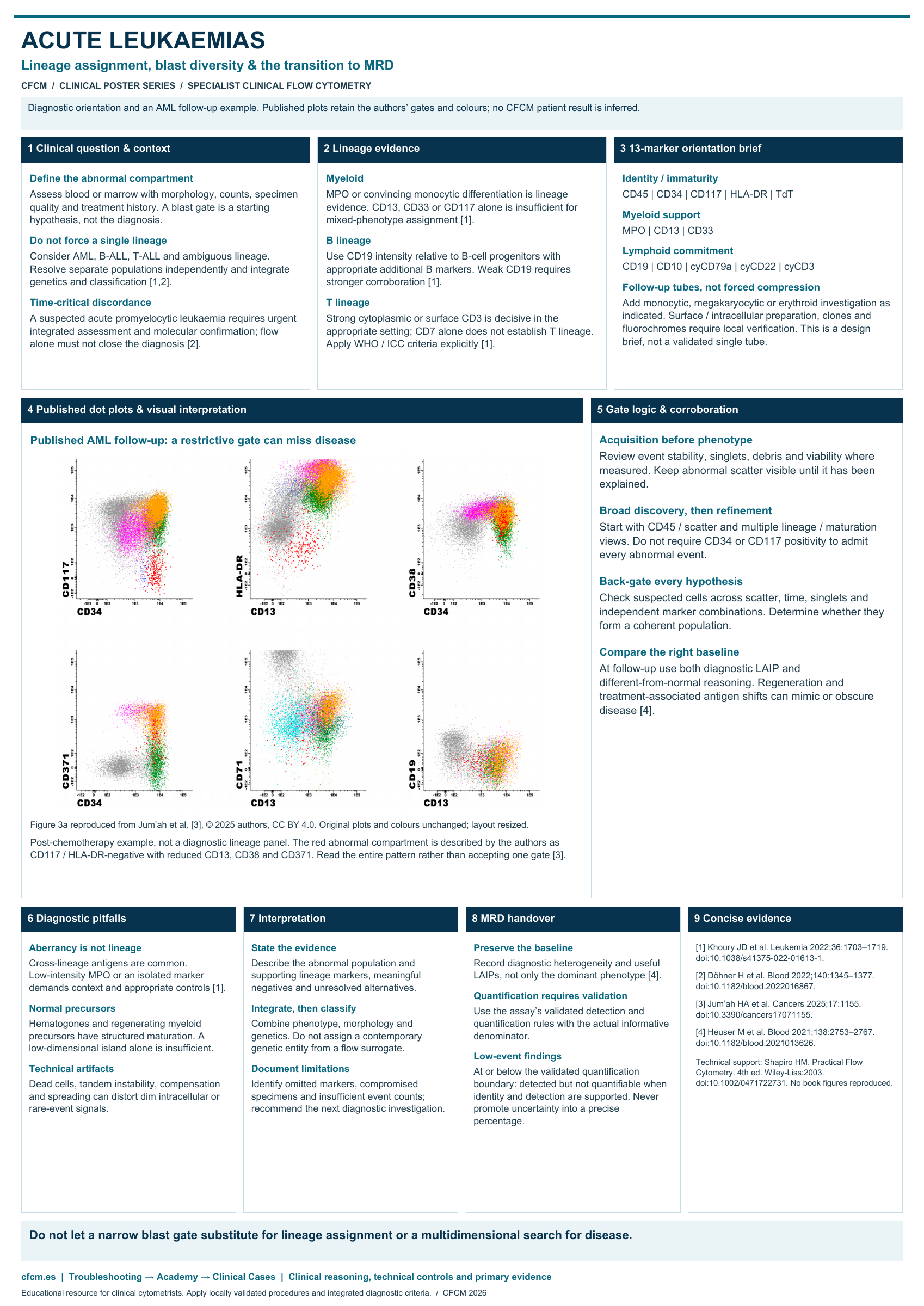

Acute leukaemias
Lineage assignment and an AML follow-up example. A narrow CD34 / CD117 gate can exclude relevant abnormal cells.
Clinical flow cytometry posters
Four focused references for clinical cytometrists and biomedical scientists. Read the reasoning online, inspect the published dot plots and download the A0 poster or editable version.

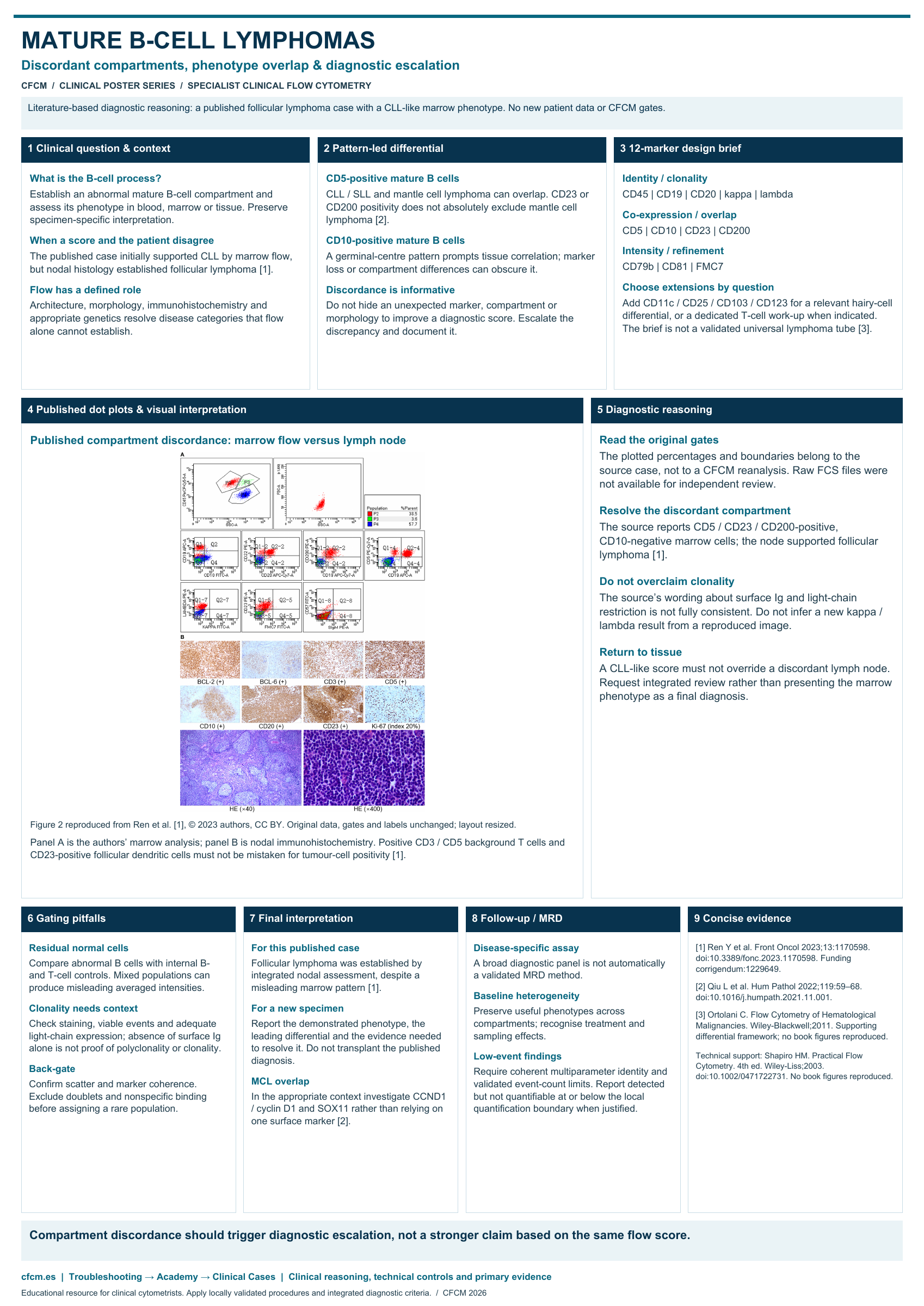

Mature B-cell lymphomas
A CLL-like marrow phenotype and discordant nodal follicular lymphoma: when to escalate the diagnosis.

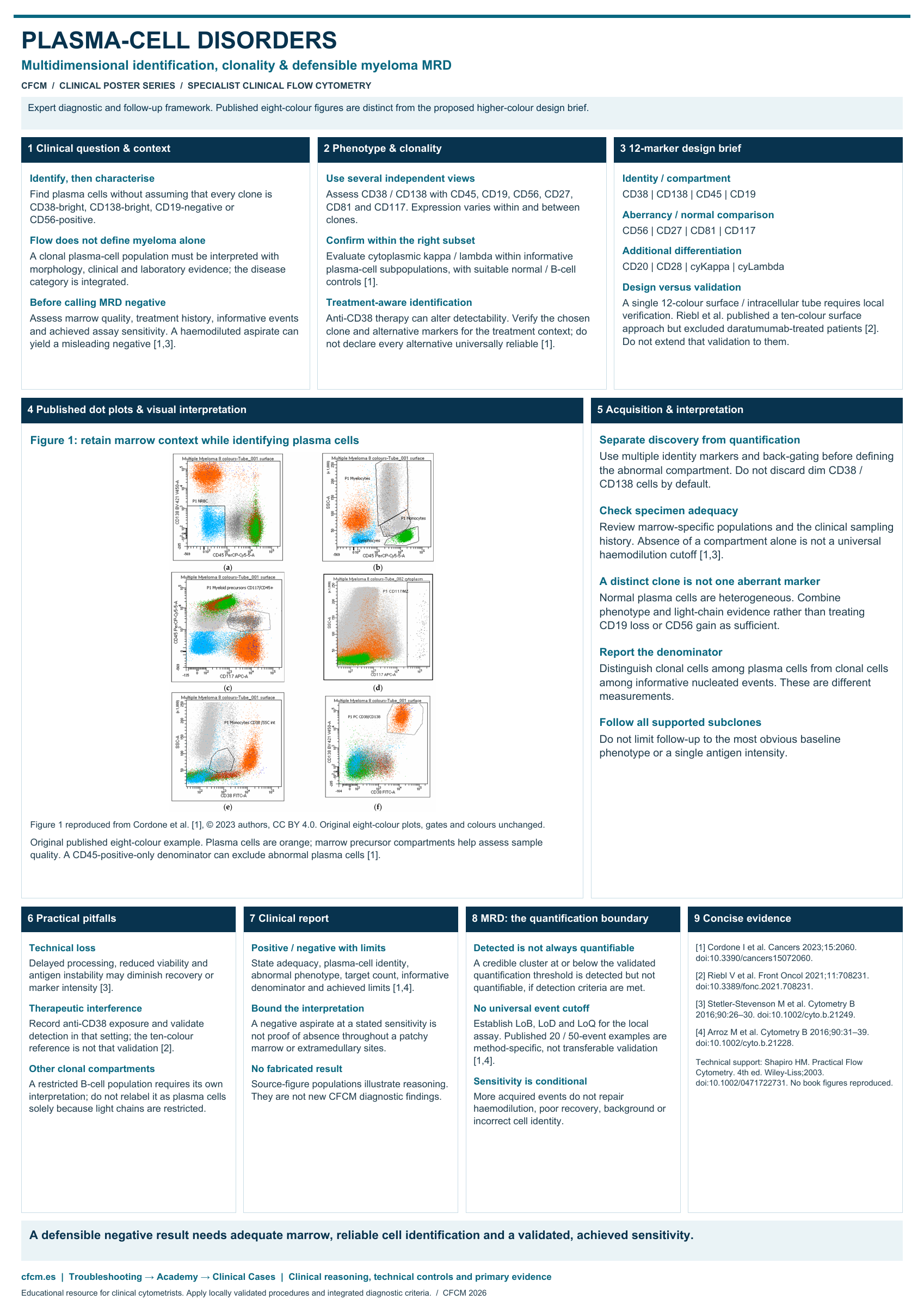

Plasma-cell disorders / myeloma
Plasma-cell identity, marrow quality, light-chain interpretation and treatment-aware MRD.

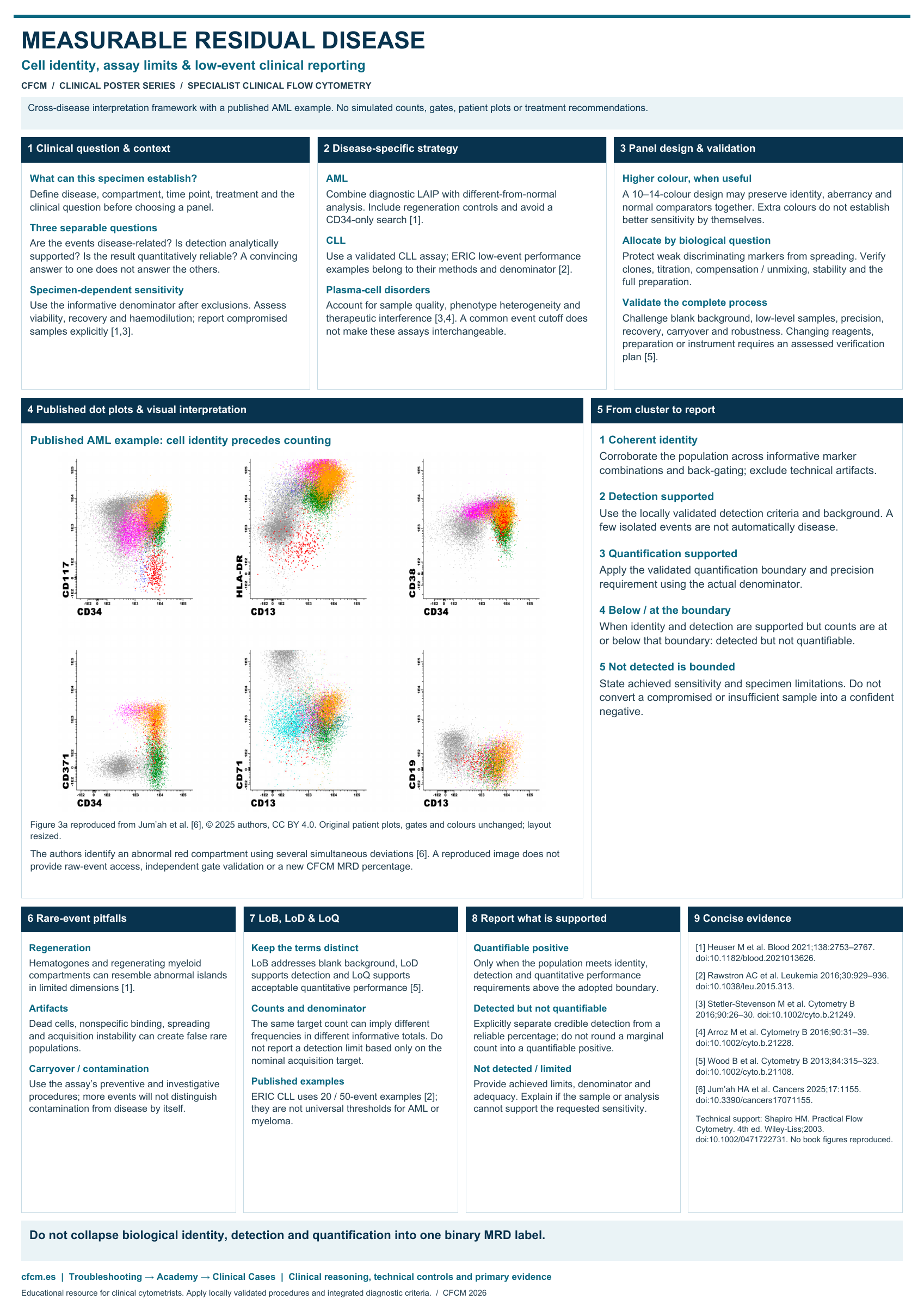

Measurable residual disease
Separate cell identity, analytical detection and reliable quantification. Preserve detected-but-not-quantifiable reporting.
Evidence and figure provenance
Published scientific figures are reproduced under their stated Creative Commons Attribution licences. Original gates, colours and source results are retained; no new CFCM patient result is claimed. Each poster names the figure, authors, DOI and licence.
Higher-colour marker specifications are design briefs requiring local verification, not validated universal tubes. The CLL dataset poster remains private while its data-reuse basis is unresolved.
Original figure resolution is preserved. Text and layout are vector-based; the lymphoma source figure has lower native resolution than the AML and myeloma figures. Editable SVG files embed the attributed originals.
Scientific figure licence: Creative Commons Attribution 4.0. Original authors and DOIs are stated in each poster. Figure resizing changes layout only.
